Shell and tube heat exchanger liquid/liquidfuelpressure
Add to favorites
Compare this product
Characteristics
- Type
- shell and tube
- Fluid
- liquid/liquid
- Other characteristics
- fuel, pressure
- Operating pressure
1.1 bar, 10 bar
(15.95 psi, 145.04 psi)- Temperature
Min.: 60 °C
(140 °F)Max.: 100 °C
(212 °F)
Description

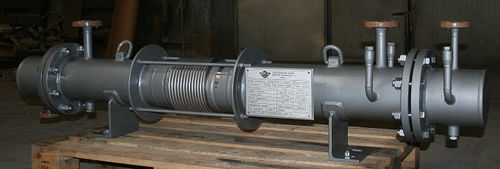

Exchangers for the Phosphorus Fertilizer Plant - production and delivery of a heat exchanger, equipped with a compensator for a pumping and heating unit for heavy fuel oil for the needs of the Fertilizer Production Department.
Main parameters:
operation of the heat exchanger in a continuous work of the system- 1020 kg/h
heating steam pressure – 2,5 atm.
amount of steam – 43,5kg/h
The exchangers were designed and manufactured in accordance with the standard PN-EN 13445:2014
Materials for pressure coating in accordance with PN-EN 10204
Material for tubes, stub pipes: P235GH
Material for shell, tube sheet: P265GH
Material for supporting structure, baffles: S235JR
Technical documentation, approval by PRS Notified Body CE 1436 according to 2014/68 / EU
