Polyurethane hose URH8-0402-02T-050for compressorsfor vacuumlaboratory
Add to favorites
Compare this product
Characteristics
- Material
- polyurethane
- Applications
- for vacuum, laboratory, for compressors
- Other characteristics
- flexible, standard, translucent, multi-color, waterproof
- Inner diameter
Max.: 3.175 in
Min.: 1.587 in
- Pressure
Max.: 7 bar
(101.526 psi)Min.: 0 bar
(0 psi)- Temperature
Max.: 50 °C
(122 °F)Min.: 0 °C
(32 °F)- Delivered length
50'00" , 500'00"
(15.24 m, 152.4 m)
Description

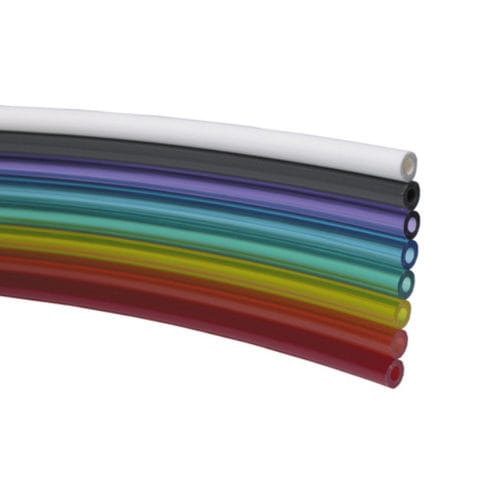

The Type 85 ShA Polyurethane Hose 8-Ribbon is intended for use in a variety of supply applications that involve pressures from 0 to 7 bar (0 to 105 psig) at temperatures of up to 50°C/120 °F.
This hose has a bend radius of 3/16" (4,75 mm), inner and outer diameter of 1/16" (1,6 mm) and 1/8" (3,18 mm), respectively, a static burst pressure of over 35 bar at 21°C (500 psig at 70 °F), and a length of 15 m/50 feet.
8-Ribbon includes 8 colors which are white, gray, purple, blue, green, yellow, orange and red and can be easily shaped with any sharp cutting edge.
Additional accessories include the Clamp 5000-1, that is only needed if the hose is used in standard applications without Clippard hose barb fittings.
Catalogs
Clippard Full-Line Catalogue
196 Pages
