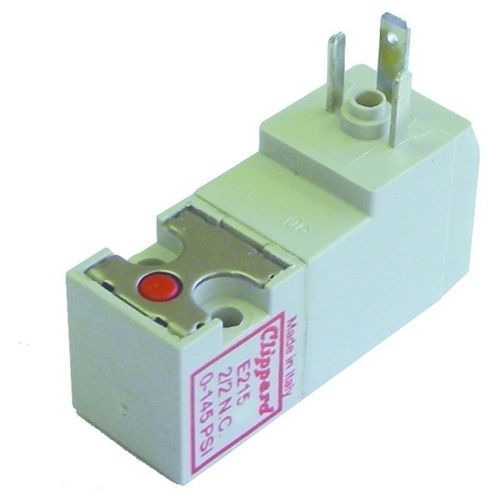

Direct-operated solenoid valve 15 mm Series

3-wayNCNO

15 mm N.C. 3-way Valve, DIN Conn, 0.032", 1.0W, 24 VDC Additional Information Coil Insulation Class F 311°F (155°C) Connection Type DIN Connector Connector DIN 43650 Form C with 8mm spade center spacing Connector P/N 6-240V no LED: CC-C, CC-C-P6, CC-C-P15; 6-24V w/LED: CC-CLL, CC-CLL-P6, CC-CLL-P15; 48-110V w/LED: CC-CLM, CC-CLM-P6, CC-CLM-P15 Flow Options 0.032" (0.8 mm) Orifice Manifolds 15 mm Manifolds Materials Stainless steel core and springs, nylon body, FKM dynamic seals, and Buna-N gasket and static seals. FKM gasket and static seals available; consult factory. Max Flow Rate 45 L/min (1.6 scfm) Medium Air, Gas or other compatible fluids Power Consumption 1.0 Watts Response Time 10 ms when energized; 12 ms when de-energized Temperature Range 23 to 122°F (-5 to 50 °C) When below 32°F, must use clean, dry air. Valve Porting 3-Way Normally-Closed Voltage 24 VDC Voltage Tolerance -5% to 10% Working Pressure 0 to 150 psig (10.3 bar)
