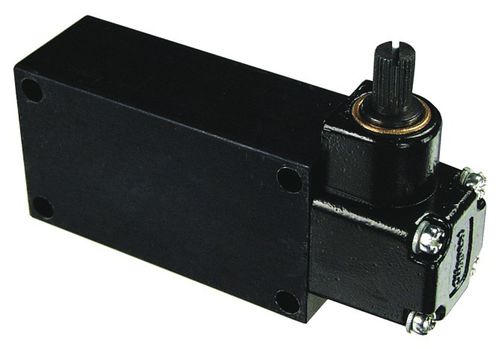

Air pressure-limiting valve LVAO series
Add to favorites
Compare this product
Characteristics
- Fluid
- air
- Controlled pressure
300 psi
- DN
0.2 in
- Flow rate
280 l/min, 540 l/min
(73.97 us gal/min, 142.65 us gal/min)
Description
Details
Heavy Duty Limit Valve, 2-Way, Normally-Open
Notes
for convenience in porting away exhaust air or attaching muffler. It should not be restricted exhaust port is not used on 2- ways.
Additional Information
Air Flow 19scfm @ 100psig
Force 3 inches/ lbs.
Max PSI 300 psig
Medium Air
Ports 1/8" NPT
Stem Travel 50 degrees
Temperature Range 32 to 230 F
Travel Arc 0-23 degrees OFF 23-50 degrees ON
