Digital pressure controller CHP - High Pressure Controllers
adjustableprecisionproportional

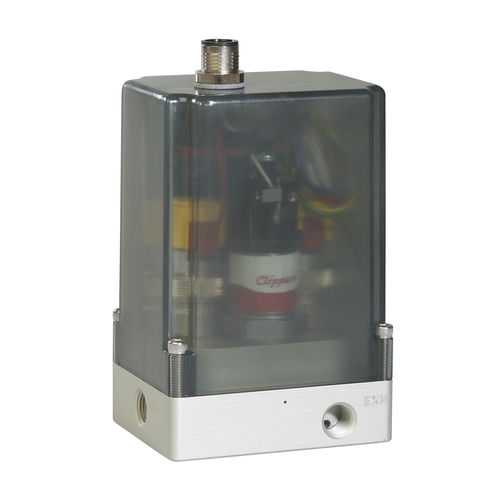

Digital pressure controller - CHP - High Pressure Controllers  - Clippard - adjustable / precision / proportional
Digital pressure controller - CHP - High Pressure Controllers  - Clippard - adjustable / precision / proportional
Add to favorites
Compare this product


Characteristics

Other characteristics
digital, precision, adjustable, proportional
Pressure

38 bar
(551.14 psi)

Description

Precise, linear digital pressure control within a closed-loop system with high accuracy and repeatability. The Cordis HP500 pressure regulator utilizes Clippard's proven EV line of electronic valves to allow for steady, repeatable downstream pressure under static conditions. The result is precise, linear pressure control within a closed-loop system. Primary Cordis HP500 Benefits: - Smooth linear control - Real-time adjustable PID control - Integrated internal or external sensor feedback - Customizable pressure ranges and mounting options The Cordis HP500 uses a microcontroller, integrated pressure sensor, and two Clippard EV electronic valves. The inlet valve is connected to the moderately regulated supply pressure and the exhaust valve is connected to a port that vents excess pressure to atmosphere. Once a command is increased, the inlet valve opens up to allow supply pressure to pass over the sensor element which provides an active feedback for the microcontroller to satisfy the set point in the process. If at any point the sensor detects a value higher than the set point, the exhaust valve will modulate open to vent off the excess pressure to maintain a stable and accurate control pressure in the process. The Cordis HP500 pressure regulator is adaptable to a variety of sensors that can close the loop around pressure.
