Flow pressure controller CP1
precisionelectronichigh-accuracy

flow pressure controller
flow pressure controller
Add to favorites
Compare this product


Characteristics

Applications
flow
Other characteristics
precision, electronic, high-accuracy, proportional

Description

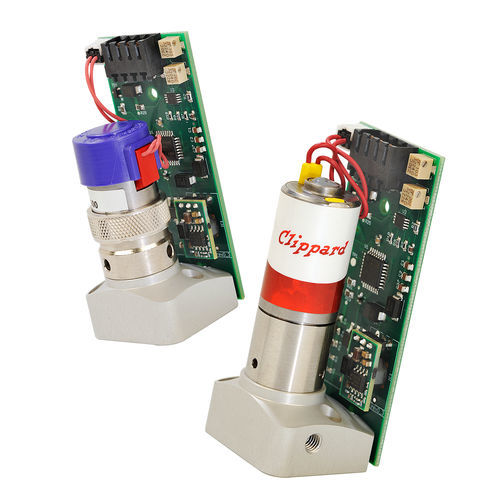

Clippard's Cordis CP1 Pressure Controller utilizes Clippard's proven EVP and DVP proportional valves to allow for steady, accurate, repeatable downstream pressure control as demand or process changes. The result is incredibly precise, linear pressure control within a closed-loop system that provides ultra-high resolution and repeatability. The CP1 Series consists of a microcontroller, an internal pressure sensor, and a Clippard proportional valve. The inlet valve is connected to the moderately regulated supply pressure. Once a command is increased, the proportional valve opens up to allow supply pressure to pass over the sensor element which provides an active feedback for the microcontroller to satisfy the set point in the process. If at any point the sensor detects a value high than the set point, the proportional valve closes and allows the process to consume the remaining downstream pressure. Features & Benefits: - Smooth, linear control - Integrated internal feedback - Multiple flow configurations - Dynamic proportional pressure control - Non-pulsing proportional fill - Customizable pressure ranges and mounting options - Compatible with multiple inert gasses - Customizable calibrated ranges - Pressure Range: 0 - 10 bar - Flow Range: 2,7 to 65 l/min - Temperature Range: 0 - 50 °C

Catalogs

CP1
CP1
2 Pages
