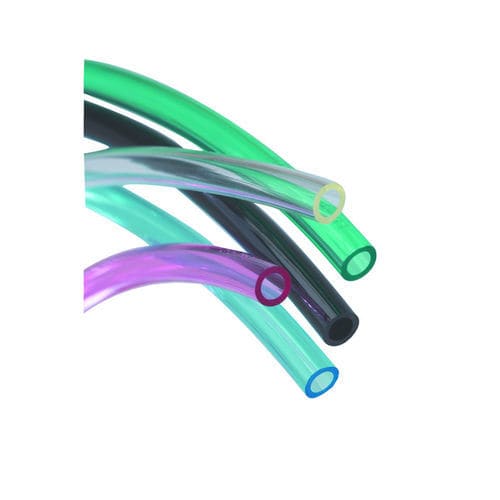

Polyurethane hose URT1high-temperaturefor chemical applicationstranslucent
Add to favorites
Compare this product
Characteristics
- Material
- polyurethane
- Applications
- high-temperature, for chemical applications
- Other characteristics
- flexible, translucent, waterproof
- Inner diameter
Min.: 0.125 in
Max.: 0.32 in
- Outer diameter
Min.: 0.125 in
Max.: 0.5 in
- Pressure
Min.: 0 bar
(0 psi)Max.: 7 bar
(101.526 psi)- Temperature
Min.: 0 °C
(32 °F)Max.: 50 °C
(122 °F)- Delivered length
50'00" , 500'00"
(15.24 m, 152.4 m)
Description
Polyurethane Tubing 95 ShA available in 50’ Roll and 500' Roll.
Can be used with Clippard Push-Quick PQ fittings.
Additional Information
Type: Single 95 Duro. Polyurethane Tubing
Working Range: 0 to 7 bar at 40°C; Maximum 50°C (0 to 105 psig at 100°F; Maximum 120°F)
Bend Radius: 3/16"
Inner Diameter Sizes: 3/32" - 0.160" - 1/4"
Outside Diameter Sizes: 5/32" - 1/4" - 3/8"
Length Available: 50 feet and 500 ft
Static Burst Pressure: Over 35 bar at 21°C (500 psig at 70°F)
