Bench-top conductivity meter HD2206

digitalprocess

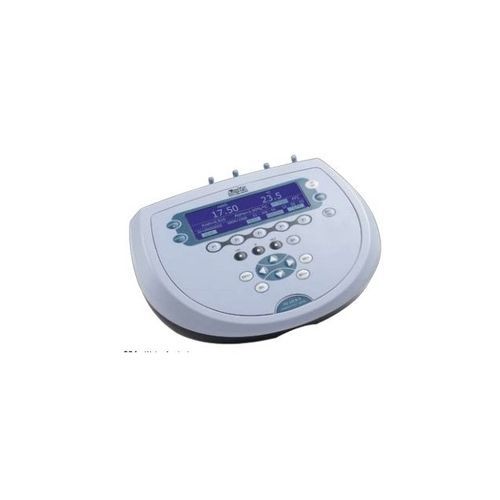

The HD2206.2 is a bench top instrument for electrochemical measures: conductivity, and temperature. It is fitted with a large backlighted LCD display. The HD2206.2 measures conductivity, resistivity in liquids, total disssolved solids (TDS), and salinity with combined 4-ring and 2-ring conductivity/temperature probes. The conductivity probes can have a direct input or with SICRAM module. The inputs are separate. All models are fitted with input for the measurement of temperature with Pt100 or Pt1000 temperature sensors. The temperature probes are equipped with an automatic recognition module and factory calibration data are stored inside. The conductivity probe calibration can be performed automatically with standard conductivity solutions: 147µS/cm, 1413µS/cm, 12880µS/cm or 111800µS/cm or manually with calibration solutions having different values. The instruments HD2206.2 is a datalogger, it can memorize up to 2000 samples of data. The data can be transferred from the instrument connected to a PC via the multi-standard RS232C serial port and USB 2.0. The storing parameters can be configured using the menu.
