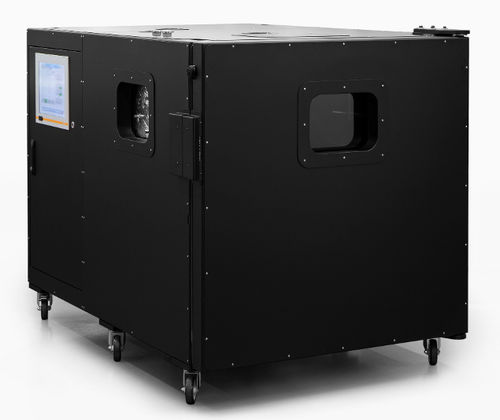

Emission test chamber

VOCformaldehydefor automobiles

VOC and formaldehyde emission test system, 1 test chamber, 1000 L, c/w measures and controls, for automotive applications, with integral FID analyser and integral chiller for fogging plate FULLY COMPLIANT to VDA 276-1, VDA 276-2, Volkswagen PV3942, ISO DIN 12219-4, ISO DIN 12219-6, ISO 12219-1, BMW GS 97014-3, BMW GS 97014-2 and many others, with the following capabilities: AUTOMATIC test cycles according to the mentioned standards . VDA 276-1 and VDA 276-2 . Volkswagen PV3942 . ISO DIN 12219-4 . ISO DIN 12219-6 . ISO 12219-1 . BMW GS 97014-3 . BMW GS 97014-2 AUTOMATIC test cycles according to standards for building products and furniture also included (ISO 16000-9, EN 16516, GEV testing methods…) Thermal desorption cycle Automatic system check before each test cycle Automated FID calibration procedure with Step by Step calls for actions Step by Step Calls for actions (insert specimen, sample air…) during pre-set automatic test cycles via mail and through clearly visible local messages Test chamber door opening control interlocked with FID measure according to BMW GS 97014-3 standard Fogging plate according to VDA 276 Part 1; integral chiller; temperature sensor integrated in the fogging plate to control temperature to 21°C +/-1°C.
