Equipment trailer Dongfeng 4X2 190HP 5T

towedconstructionhydraulic

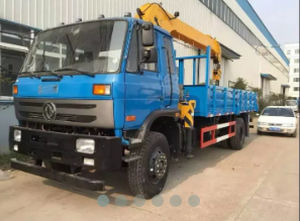

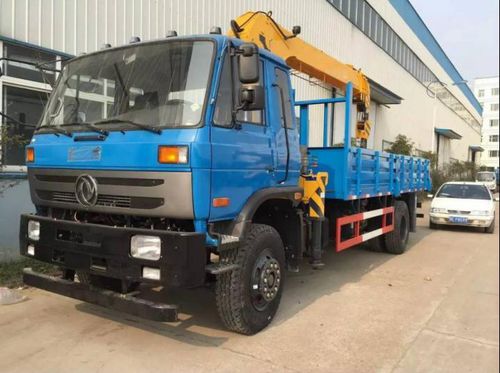

Dongfeng 4X2 190HP 5tons Cargo Truck Mounted Crane Crane truck is also called crane with truck, truck mounted crane, is a kind of equipment that can realize the lifting, swinging and hoisting of goods, through the hydraulic lifting and telescopic system. Crane truck is mostly used in stations, warehouses, docks, construction sites, field rescue and other places. Crane truck is mostly used in stations, warehouses, docks, construction sites, field rescue and other places. It can be equipped with different lengths of cargo boxes and different tonnage cranes. You can also install water tank inside the cargo box, to the truck mounted sprinkler. Item No. Parameters Overall dimensions(L x W x H)(mm) 7270×2470×3600 Cargo body 4820mm*2050mm*600 mm Curb Weight 4990kg GVW 12500kg Payload 8000kg Wheel base 3950mm Wheel track (front/rear) (mm) 1750/1640 Front/Rear axles loading capacity 5000/7500 Engine Cummins inline four-cylinder, water-cooled, pressurized cold, direct injection Engine horsepower 190HP Euro III Gearbox 6 forwards & 1 reverse Displacement 5900 ML(diesel) Cabin Dongfeng DLK cab ,with three seats, 70°hydraulically tillable to the front. Max Driving Speed 95km/h Tire 7.50-16 nylon tires with one spare Crane system 5 T telescopic crane, Chengli brand
