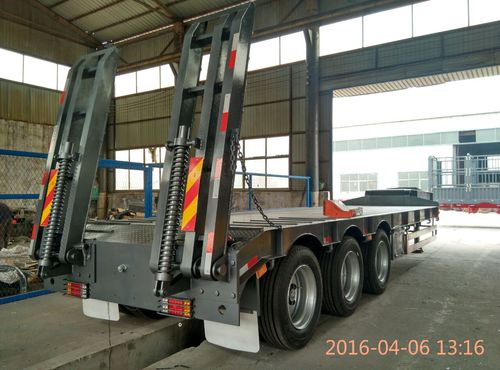

3-axle semi-trailer 43534FE

towedflangerim

Carbon Steel 3 Axle Low Bed Semi Trailer Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 18mm,width 140mm; Middle Flange 8mm,Height 500mm, Bottom Flange 20mm,width 140mm. DIMENSIONS Tare Weight 12000kg Overall Length 13000mm Overall Width 2500mm Overall Height 2980mm Payload 60000kg SPECIFICATIONS Axle 3 axles BPW 13ton, FUWA, L1 brand are optional Suspension Heavy duty mechanical slung suspension Floor 3mm checker plate Leaf Spring 8 piece Leaf spring King Pin JOST brand 2” Bolt-in King Pin Landing Gear JOST brand Two-speed, manual operating, heavy duty landing gear Wheel Rim 8.25-22.5 wheel rim 13 pieces including one spare time Tire 12R22.5 tire with one spare tire , 13 pieces Painting Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint Accessories One standard tool box
