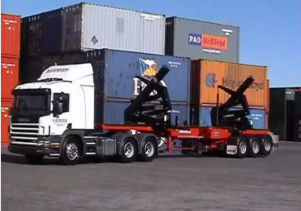

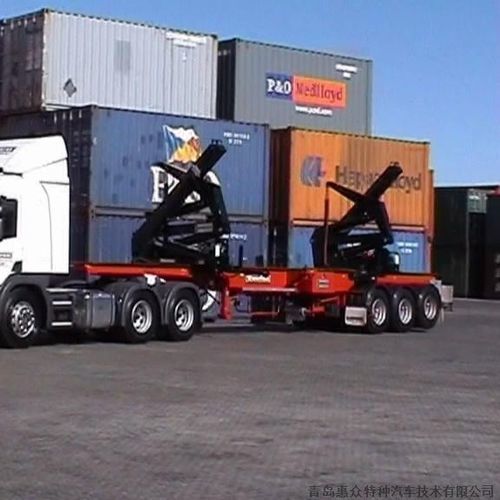

2 Axles 3 axles 20 FT 40 FT automatic Container self loading semi trailer with contianer crane
Product Description
CLW 20 FT 40 FT Container self loading semi trailer Lowbed Semi Trailer Specifications
MAIN SPECIFICATION of self loading container truck trailer
Overall(L*W*H) - 14100*2500*4100mm
The distance between trailer and container
Optimum distance:400mm
The largest distance :1500mm
Side Lifter Crane - Quality Side Crane
Max. lifting capacity - 40000kg
Max.stabiliser outreach - 3200mm
Max. working range - 4000mm
Max. pressure of hydraulic - 28MPa
Hydraulic system Hydraulic pump: Italian CASAPPA
Electric control system
Hydraulic control valve: Netherlandish AMCA
Telecontroller: German NBB
Voltage: 12V
Two chain - Two chain: lgus (imported)
Diesel engine - Japanese Kubota diesel engine
Trailer Chassis -
L*W*H:14100*2500*4000mm
Axles: 3*13 tons axles
Tire: 12R22.5 tubless tire, 12 pcs
Suspension:Heavy duty type mechanical suspension
Kingpin:2 inch or 3.5 inch bolted type
Landing gear: 28T
Spare parts - Imported from Swedish
Description
1.Side loader can slide to load/unload 20ft,40ft container.
-Titan sideloader are widely used in ports, stations and yards for load/unload 20ft, 40ft ISO standard container.
2.High lifting capacity.
-Tian sideloader has the highest lifting capacity, staring at 37ton in the basic design and available with a full 40 ton of capacity.
Water-drenching device
