3 Axle 24CBM 40 Ton Tipping Dump Tipper Semi Trailer
3 Axle 24CBM 40 Ton Tipping Dump Tipper Semi Trailer
Dump Truck mainly transport sand, stone, soil, garbage, building materials, coal, ore, food and agricultural products.
The capacity of the 10 Wheel Mining Dump Truck from 40metric ton to 70metric ton
Suspension:German design mechanical suspension
3 Axle 24CBM 40 Ton Tipping Dump Tipper Semi Trailer
DIMENSIONS
Tare Weight 12500kgs
Payload 45000kgs
Overall Length 8500mm
Overall Width 2465mm
Dump body size 7000mmx2300mmx1500mm

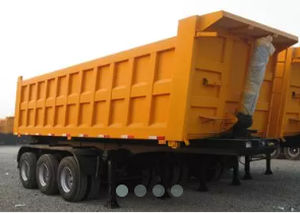

Photo for reference, final produce can be made according to exact requirements
DUMPER BODY
Volume 24 m3
Side Wall 6mm thickness
Front Wall and floor 8mm thickness
Loading condition Sand or earth
SPECIFICATION
Chassis
Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Double Middle Flange 6mm and 8mm ; Bottom Flange 16mm,width 140mm.
Axle
3 axles
BPW 13T , FUWA 13T , L1 13 T are optional (BPW is German brand)
Hydraulic System One set of HYVA cylinder
Suspension German design mechanical suspension
Leaf Spring 13-piece leaf spring. 11x100
King Pin JOST brand 2” Bolt-in King Pin
Landing Gear JOST brand Two-speed, manual operating, heavy duty landing gear
Wheel Rim 9.00R22.5 wheel rim, 13 pieces including one spare
Tyre 12R22.5 tubeless tire, 13 pieces including one spare
Spare Tire One set of spare tire including a carrier
