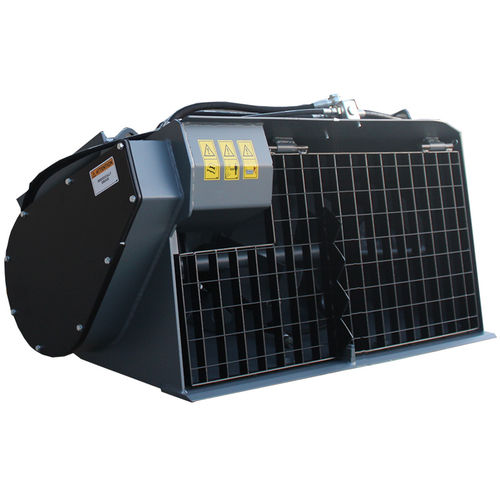

Concrete mixing bucket MIX 350, MIX 500

for loadersfor telehandlersfor tractors

MIX | MIXING BUCKET The mixing bucket MIX series has been designed to prepare concrete quickly and in any condition. Produced in 10 models, it can be applied to all operating machines such as skid steer loaders, excavators, backhoe loaders, wheel loaders, telescopic handlers, tractors. Equipped as standard with an electrically valve for the hydraulic controlling the opening of the drain nozzle, a galvanized protection grid with a bolted saw (hydraulic or with gas springs as optional), hydraulic pipes and drainpipe. Sharp part, shoulders, bottom and cochlea are made of wear-resistant material. OPTIONALS Bolted interchangeable bottom Opening of grid with gas springs Hydraulic opening grid Pre-arrangement for excavator Pre-arrangement for tractor Bolted and interchangeable upper bracket Hydraulic quick couplings kit Connector 8-14 Poles 12 V Concrete Mixing Bucket models MIX 350 and MIX 500, medium sized, are particularly suitable for any tipe of urbanization and drainage work, street flooring. MIX 350 MIX 500 Useful width(mm): 1400 1600 Overall dimensions(mm): 1600 1800 Capacity(l): 350 500 Max Capacity (l): 400 550 Void Weight(kg): 450 550 Required Flow(l/min): 40/60 40/60 Pressure(bar): 170 170
