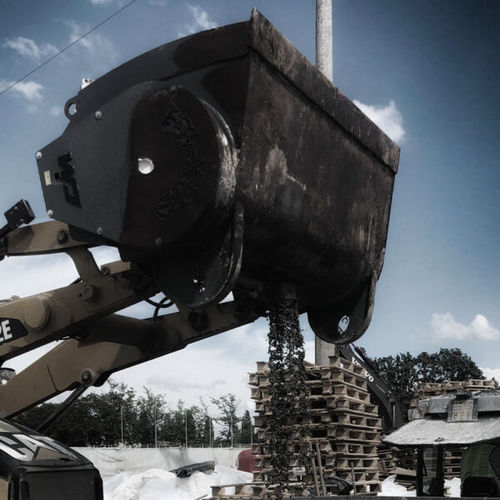

Concrete mixing bucket MIX 650, MIX 800

for loadersfor telehandlersfor tractors

MIX | MIXING BUCKET The mixing bucket MIX series has been designed to prepare concrete quickly and in any condition. Produced in 10 models, it can be applied to all operating machines such as skid steer loaders, excavators, backhoe loaders, wheel loaders, telescopic handlers, tractors. Equipped as standard with an electrically valve for the hydraulic controlling the opening of the drain nozzle, a galvanized protection grid with a bolted saw (hydraulic or with gas springs as optional), hydraulic pipes and drainpipe. Sharp part, shoulders, bottom and cochlea are made of wear-resistant material. OPTIONALS Bolted interchangeable bottom Opening of grid with gas springs Hydraulic opening grid Pre-arrangement for excavator Pre-arrangement for tractor Bolted and interchangeable upper bracket Hydraulic quick couplings kit Connector 8-14 Poles 12 V Concrete Mixing Bucket models MIX 650 and MIX 800, allow to make the concrete in any condition and place, and they are suitable for any tipe of urbanization and drainage work, street flooring. MIX 650 MIX 800 Useful width(mm): 1800 1800 Overall dimensions(mm): 2030 2030 Capacity(l): 650 820 Max Capacity (l): 780 1050 Void Weight(kg): 700 800 Required Flow(l/min): 70/100 70/100 Pressure(bar): 170 170
