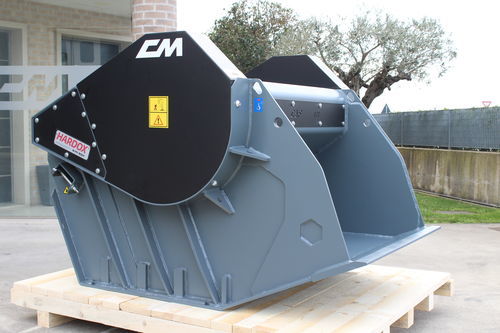

Crusher bucket CBF 120

for excavators

CBF – CRUSHER BUCKET The CBF series crusher bucket is designed to crush material such as bricks, concrete, reinforced concrete, tiles, clays, asphalt slabs or inert material from demolition, quarry, or natural stone directly on site. It is produced in 6 models for excavators and wheel loaders from 4 to 45 tons, and for backhoe loaders and skid steer loaders from 3 to 12 tons. The structure grants minimum wearing and increases crush resistance, it can work in hard working conditions, without fearing weathering. The adjustment of the output size varies from 5 mm to 135 mm and the internal jaws are easily interchangeable. The CBF is equipped with a centralized greasing system and has a bi-rotary system that can reverse the eccentric shaft and therefore the rotation in case of blocking. The CBF 120 crusher bucket also differs in its innovative and functional crushing system. The flywheels, the belt, the motor and the hydraulics have been designed inside the casing in order to be protected from impacts during work. Technical features Excavator: 30-45 ton Mouth size: 1210x550 mm Weight: 5000 kg SAE Capability: 1,20 m³ Pressure: >220 bar Flow: >180>250 l/min Opening: 15/135 mm Optional Dust suppression kit Front and back excavation teeth Magnet Kit+Control panel Pre-arrangement for Wheel Loader or Telescopic Inked lodestone
