Sorting grab G140
hydraulicscrapwood

Sorting grab - G140 - CM Srl - hydraulic / scrap / wood
Sorting grab - G140 - CM Srl - hydraulic / scrap / wood
Sorting grab - G140 - CM Srl - hydraulic / scrap / wood - image - 2
Sorting grab - G140 - CM Srl - hydraulic / scrap / wood - image - 3
Sorting grab - G140 - CM Srl - hydraulic / scrap / wood - image - 4
Add to favorites
Compare this product


Characteristics

Type
sorting
Operation
hydraulic
Applications
scrap, wood
Other characteristics
for excavators
Carrier weight

Max.: 9 t
(10 us ton)

Min.: 4 t
(4 us ton)

Grab mass

350 kg
(772 lb)

Description

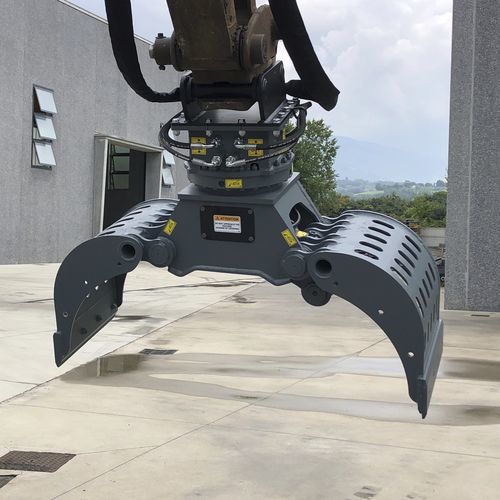

G140 sorting grapple for sorting materials on construction sites, forestry, landfill sites, and scrap yards. It is also suitable for small and medium-scale demolition work. TECHNICAL INFORMATION For excavators from 4 to 9 tonnes Capacity (claws closed) 0.20 m3 Weight 350 kg 360° rotation n. 1 cylinder n. 1 Rotation motor Oil pressure (rotation) 120 bar Oil flow rate MIN/MAX (rotation) 10 ÷ 20 l/min Oil pressure (opening/closing) 0 ÷ 250 bar Oil flow rate (opening/closing) 40 l/min Dimensions: 1400x500x900 mm
