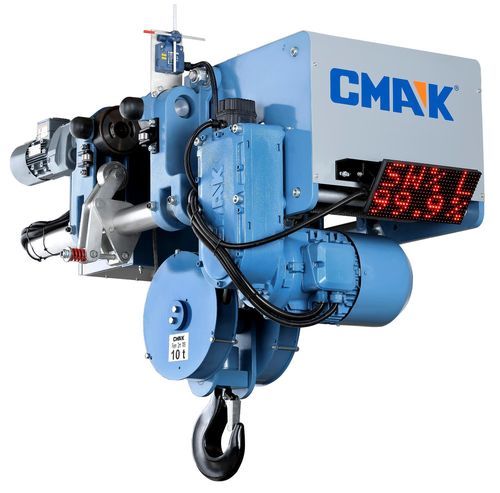

Load monitoring system Hoistsense+

for overhead cranesModbusreal-time

Simple Monitoring to Industry 4.0 HoistSense+ is an advanced electronic system that constantly keeps track of usage, load and critical incidents; while using this information to the advantage of the user to fuıther increase the effîciency and decrease the downtime of the hoist. Here is why it’s a GREAT option to consider for your crane: Stored Parameters: Remaining safe working period (SWP) of the hoist. Current load on the hook. Total number of overload incidents. Total running time of the hoisting motor. Main load. Load spectrum (Light Medium, Heavy, Very Heavy). Total number of starts. Time to next maintenance (Depending on the usage - Dynamic). Duty. Real-Time Monitoring PermanentSWP (Safe working Period) calculation. Physical sensors on brake-linings checking for wear on the brake-pads Up-to-date information about the remaining duration of service. Comply with the regulations. Increased Efficiency With UltraSpeed function enabled, HoistSense+ increases nominal speed on all motions when the load is below certain set amount of the SWL. Safe Working Continuous overload protection with precisely calculated strain gauge load measuring system. Continuous overheat protection of electric motors and control panel Load-Sharing HoistSense+ can share data with other HoistSense+ up to 3 via ModBus. Slack Rope Supervision Informative Display With its display mounted on hoist, the HoistSense+ informs the operator and maintenance crew for critical information Weighing Display Real-time display of the loads via strain gauge sensor. Service Optimization Available alarms for preventive maintenance periods. Tracking of past maintenances.
