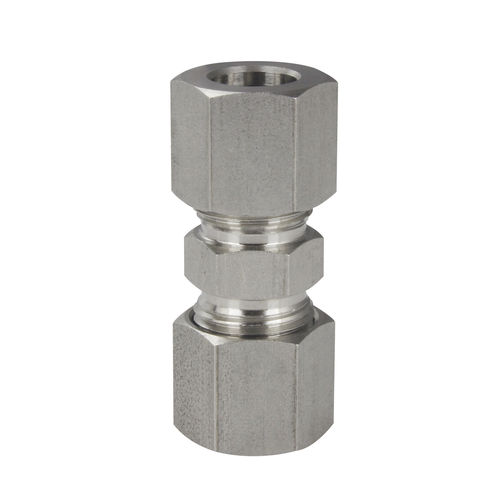

Chemical fitting OX LinepneumaticcompressionT
Add to favorites
Compare this product
Characteristics
- Applications
- for chemicals, pneumatic
- Attachment
- compression
- Configuration
- T, elbow
- Norms
- NSF/ANSI 169
- Material
- stainless steel
- Gender
- male, female, male-female, female-female, male-male
- Other characteristics
- for the food industry, for the pharmaceutical industry, for the biotechnology industry
- Diameter
Min.: 4 mm
(0.157 in)Max.: 12 mm
(0.472 in)- Operating pressure
80 bar
(1,160.3 psi)
Description
The OX fittings are completely made in AISI 316L (1.4404) and they are suitable for assembly with stainless steel pipes. The pipe connection is easy and needs no grease, allowing thereby to keep the food-grade degree of the product. The olive seat, the olives, and the nuts are all manufactured according to ISO8434/DIN 2353 norm.
1 > Body: Stainless Steel AISI 316L (1.4404) 2 > Nut: Stainless Steel AISI 316L (1.4404) 3 > Olive: Stainless Steel AISI 316L (1.4404)
Recommended tubings: Seemless Stainless steel pipes according to the DIN EN 10216-5 Norm
Acceptable hoses tolerances: According to DIN EN 10216-5
Application fields: Food and Pharma industry and instrumentation
