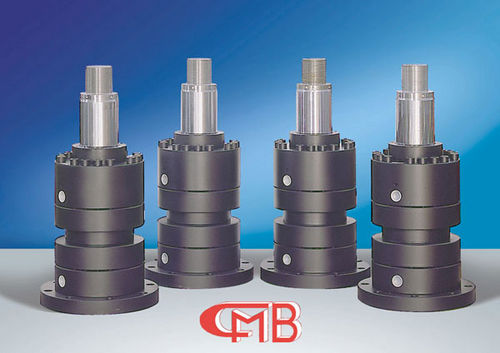

Hydraulic cylinder CMB 09

double-acting

The range of CMB 09 series double-acting hydraulic cylinders and servo-cylinders has been developed to specifically meet the most demanding drive unit requirements of the iron and steel industry in accordance with ISO 6022 and DIN 24333 construction standards. The compact construction with round heads, the care taken in choosing the materials and seals used, combined with strict final testing which reproduces the cylinders normal working conditions, make these hydraulic actuators the very best offered by technology in the field of hydraulic drive units for all types of industrial applications, in particular for critical requirements such as those of the iron and steel sector which require strong, reliable and easily maintained products. Interchangeable dimensions: in accordance with standard ISO 6022 and DIN 24333 Nominal working pressure (continuous service): 250 bar (25 MPa) Maximum working pressure: 320 bar (32 MPa) Bores available: from 50 to 400 mm including N° 2 bores non-compliant with ISO 6022 standard
