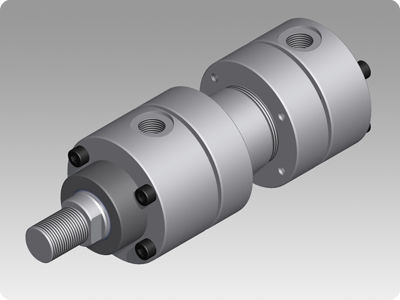

Hydraulic cylinder ISO 6020/1, max. 160 bar | CMB 05

double-acting

The range of hydraulic double-acting CMB 05 series cylinders and servo-cylinders has been developed to meet the most demanding drive unit requirements of the industrial sector in accordance with ISO 6020/1 construction standards. The compact construction with round heads, the care taken in choosing the materials and seals used, combined with strict final testing which reproduces the cylinders’ normal working conditions, make these hydraulic actuators a valid choice for all types of industrial applications in which maximum reliability and repeatability with high dynamic working features are required. Interchangeable dimensions: in accordance with standard ISO 6020/1 Nominal working pressure (continuous service): 160 bar (16 MPa) Maximum working pressure: 240 bar (24 MPa) Bores available: from 25 to 320 mm
