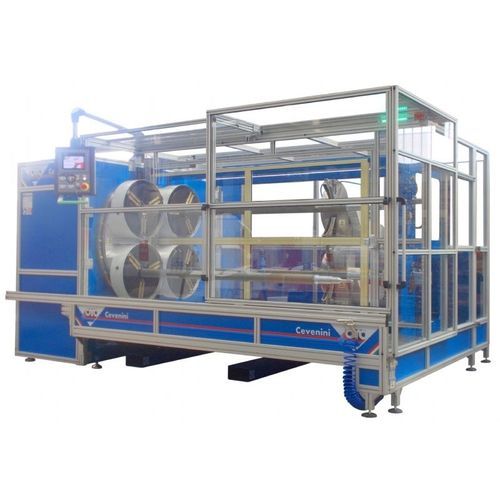

Automatic slitting machine E4-460B

Fully automatic nonstop working cycle, including the overturning of the turret with manual loading and unloading of material. Max. working width:1700mm. (67”). Max. outside Ø of log: 460mm (18,1”) on Ø 76mm (3”) mandrels with Ø550mm (21,6”) blades. Max. weight of material loadable on unsupported mandrel: 80 kg (176.5 lbs). N. 4 mandrels Ø 76mm (3”). Indexing tolerance: +/- 0,1mm (0,003”). Cutting width: from 2 mm (0,008”). with decimal increasing. Cutting system: two over imposed circular blades to slit two logs simultaneously on two mandrels.Other two mandrels available for loading/unloading operation. Turret rotation combined with automatic expansion of the mandrels provides continuous operation and allows faster loading and unloading of material. N. 4 pneumatic chucks with outside Ø of log capacity 460mm (18,1”). Driven blade units. Automatic blade pivoting angle. Automatic detection of log diameter. Machine controlled by “PLC SIEMENS” and interface operator “TP700” colour touch screen technology This model can be customized to meet customer's needs thanks to a wide range of options available.
