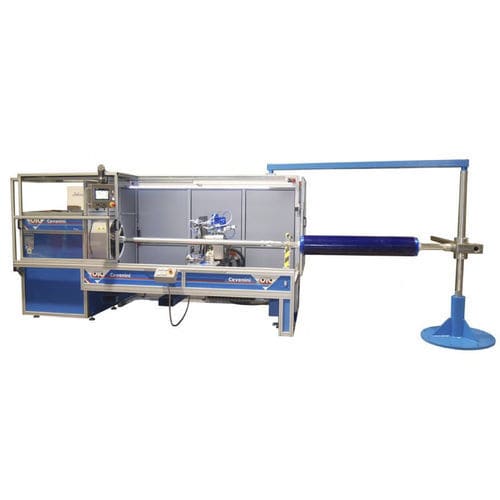

Automatic slitting machine E450 F/L+A

Fully automatic working cycle with the exception of loading and unloading of the material. Working width: 1700mm. ( 67" ). Max. O. D. of the log: 430mm (16.9") on Ø 76mm (3”) mandrel with Ø 500mm. (19.7") blade. Max. weight of material loadable on unsupported mandrel: 80 kg (176.5 lbs); with supported mandrel , 200 kg (441 lbs). Interchangeable mandrels from Ø 25mm (1”) to Ø 76mm (3”). Indexing tolerance: +/- 0,1mm. (0,003"). Cutting width: from 2mm. with decimal increasing (from 0.08” with thousandths increasing). Cutting system: single rotating blade on one mandrel. Auxiliary swivel poles device for loading and unloading material. Max. log weight on each pole 80kg. (176,5lbs.) Total sound proof protection guard with sliding doors, complying with the “EC” requirements in force. Internet remote-service assistance with link to CMC CEVENINI for on-line software up-date and fault finding. This model can be customized to meet customer’s needs thanks to a wide range of others options available.
