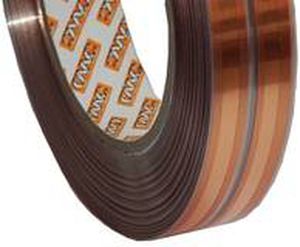

Copper ribbon CMC38xxx series

Screening tapes with partial or full insulation are used for static screening in transformers or as windings "wires" with optimal use of available space for high efficent transformers. Copper thickness 0.030mm to 0.400mm possible (upon inquiry up to 1mm). The technical values of the insulation foils correspond to the data in our catalogue. All version are UL-certified (E93622). Some of the main advantages: Reduces the necessary cross section of copper because of optimal shape in comparison to round wires. Ease of getting admittance for a winding construction due to the optimal safey UL listed materials for class B, F and H available Reduced skin-effect (high amp and high frequency), much more reliable due to reduction of vibration, interlayer-potential differenz, better thermal conductivity and higher ampacity. Prevents danger of short circuit between pimary and secondary windings
