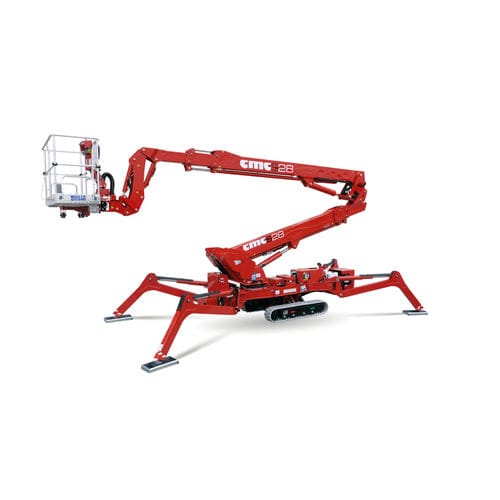

Crawler spider lift S28
self-propelledelectricdiesel

Crawler spider lift - S28 - CMC Lift - self-propelled / electric / diesel
Crawler spider lift - S28 - CMC Lift - self-propelled / electric / diesel
Crawler spider lift - S28 - CMC Lift - self-propelled / electric / diesel - image - 2
Crawler spider lift - S28 - CMC Lift - self-propelled / electric / diesel - image - 3
Crawler spider lift - S28 - CMC Lift - self-propelled / electric / diesel - image - 4
Crawler spider lift - S28 - CMC Lift - self-propelled / electric / diesel - image - 5
Crawler spider lift - S28 - CMC Lift - self-propelled / electric / diesel - image - 6
Crawler spider lift - S28 - CMC Lift - self-propelled / electric / diesel - image - 7
Add to favorites
Compare this product


Characteristics

Portability
crawler, self-propelled
Motor type
electric, diesel, diesel-electric hybrid
Applications
indoor/outdoor, forestry, indoor, underground, for construction, outdoor
Other characteristics
compact, for heavy loads
Working height

28,000,000 µm
(91'10" )

Min.: 10 µm

Max.: 28,000,000 µm
(91'10" )

Lift capacity

230 kg
(507.1 lb)

Description

Double telescopic boom, high technology, high performance squared A bundle of power and technology capable of amazing performance in any application. With four stabilisation areas, two working areas and up and over outriggers, this is a spider aerial platform that can work on any terrain and reach even the most difficult spots, thanks to its 28 metres of maximum working height, 14 metres of lateral outreach and 6.7 metres below the level of the platform. S28 model provides to its users unique manoeuvrability, guaranteed by the automatic control system, so technologically advanced but really simple and intuitive to use. It is equipped by a double telescopic bloom plus jib, thanks to which it can reach almost anywhere and operate in all conditions. Moreover, it has a display for self-diagnosis and error code detection, and you can choose between different engines. S28: high technology meets ease of use.
