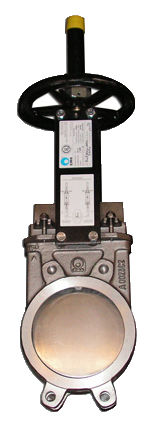

Knife gate valve A serieswith handwheelshut-offwafer
Add to favorites
Compare this product
Characteristics
- Type
- knife gate
- Operation
- with handwheel
- Body
- wafer
- DN
Max.: 2,000 mm
(78.74 in)Min.: 50 mm
(1.969 in)
Description
Wafer style, uni-directional knife gate valve. One piece integral cast body with guides to support the gate and seating wedges. High flow rates with low pressure drops.
USE
This knife gate valve is appropriate for liquids with a solids concentration of maximum 5%.
If it is used for dry solids in gravity feed applications it is recommended to be installed with the arrow in the opposite direction to the flow direction.
CONSTRUCTION DIMENSIONS
Standard manufacturing sizes: From DN50 up to DN2000
Bigger diameters under request
