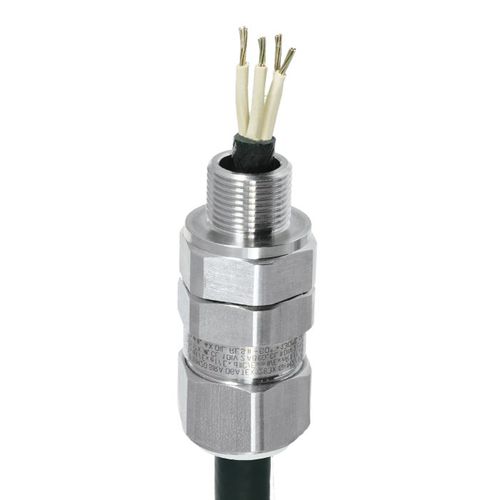

Stainless steel cable gland TE1FUexplosion-proofIP68IP66
Add to favorites
Compare this product
Characteristics
- Material
- stainless steel
- Protection level
- explosion-proof, IP68, IP66, IP67, EMC-shielded
- Other characteristics
- for armored cables
- Cable diameter
Max.: 123.2 mm
(4.85 in)Min.: 6.1 mm
(0.24 in)- Operating temperature
Max.: 130 °C
(266 °F)Min.: -60 °C
(-76 °F)
Description
Globally Approved, Explosive Atmosphere Cable Gland
• Stainless steel compact design
• Fully sequential, three step installation procedure
• Reduces installation times, cost & risk
• Direct & remote installation
• Unique compensating displacement seal system(CDS)
• Metal-to-metal installation regardless of cable bedding diameter
• Designed to prevent Coldflow, see CMP Technical Document TS002 (available upon request)
• Integral protected deluge seal
• Controlled outer ‘load retention’ seal
• Unique OSTG prevents overtightening
• -60°C to +130°C
• Globally marked, IECEx, ATEX & cCSAus
• EMC tested
