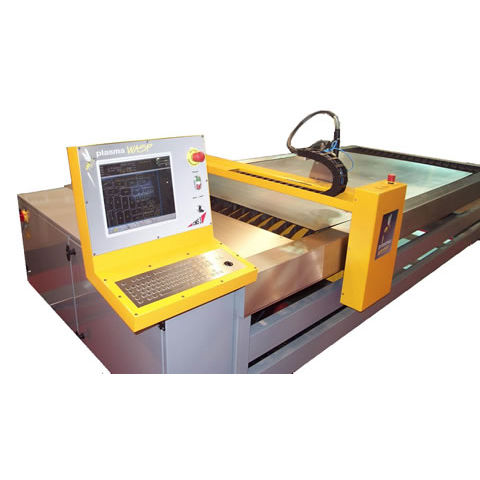

Plasma cutting machine plasmaWASP

for metalsheet metalCNC

The ideal plasma cutting table for HVAC duct work Reliable, field proven and very fast cutting of thin metal sheets of up to 10mm thickness. A modern CNC controller and powerful plasma cutting source produce cuts of highest quality which need not be re-worked or cleaned afterwards. This machine comes equipped with a marking pen for labeling parts and drawing fold lines with fold angles. The robust and powerful motors and a virtually maintenance-free tooth-belt configuration guarantee virtually no wear-and-tear and therefore a long life expectancy. The moving exhaust trough with environmental filter assures clean work pieces and a clean work place with much less required exhaust power. Technical Data: Cutting area: - 1.5m x 3m Cutting speeds: - max. 25 m/min marking using pen, up to 15 m/min cutting galv. sheet metal 0.6mm thickness, up to 10 m/min Precision: - +/- 0.2 mm/m (depending on cut with of torch used) max. Thickness: - up to 12mm steel St37, depending on type of torch used Drive: - dual tooth-belt drives, brushless motors Exhaust: - moving exhaust trough Tools: - pneumatic controlled tool head for torch and marking pen Power supply: - 3x400V, 50Hz, 32A, 7-10kW, NYY 6mm² (torch power supply) 3x400V, 50Hz, 16A, 2kW, NYY, 2.5mm² (controls and drive) Pneumatic supply: - 1 x 2.5 bar, 30 l/min (controls) 1 x 6 bar, 230 l/min (plasma power supply) Controls: - modern CNC-controller and modular axis controller in 19" rack Control panel: - PC mounted in control cabinet, with 17" plasma display and stainless steel keyboard Ethernet network
