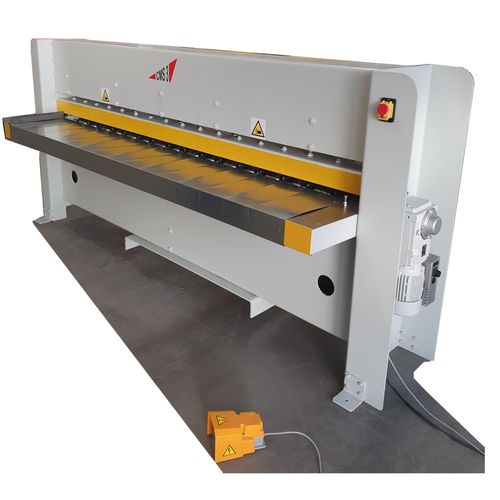

Machine for pleating and stiffening of duct work
This machine is used for pleating and stiffing of metal sheets used in duct work. The standard profile is the Z-profile and it is ideally suited duct stiffening, but optionally the machine can be equipped with T-profiling rolls as well.
Material: -
galv. steel: 0.5 to 1.5mm
INOX / stainless steel: 0.4 to 1.0mm
Aluminum: 0.4 to 1.0mm
Max. sheet width: - 2500 mm
Z-Profil: - 160 mm x 7-12 mm
T-Profil: - 50 mm x 1 mm
Operating speed: - 15-20 m/min
Working height: - 900 mm
Weight: - 850 kg
Power supply: - 3 x 400 V / 50 Hz, 2.2 kVA
