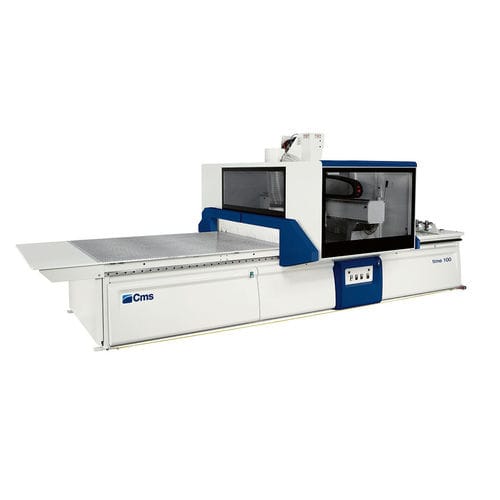

3-axis CNC machining center time 100

verticalmobile gantryfor plastics

Machining center designed and engineered for plastic materials processing Due to the unique design and PRO-SPACE safety systems, it requires less floor space and can be operated from all sides for material handling of smaller components. MINIMUM ENCUMBRANCE MAXIMUM ACCESSIBILITY Thanks to the “pro-space” protections the loading area is absolutely unobstructed in order to minimize the space occupied. The absence of perimeter protections enables accessing the work surface from all machining centre sides. SPECIALIZED WHEN NEEDED A range of dedicated heads and special devices for graphic reference survey increase the machining centre specialization without renouncing the performance of a mobile gantry structure of higher class. FIXTURES AND FORMAT CHANGING IN RECORD TIME The worktable is sturdy, practical and non-deformable due to the laminated aluminium structure; it is also equipped with the widest range of mechanical clamping devices. The worktable is equipped with the exclusive magnetic system for vacuum closing, which enables an average 25% saving in localizing the workpiece positioning area. LIMITLESS MACHINING WITH INTERPOLATING VECTOR AXIS Absolute freedom in tackling even the most complex geometries, as it is typical of plastic components. Automatic 360° rotation and positioning on the X-Y working plane of the angular transmission heads by means of the NC digitally controlled interpolating Vector axis.
