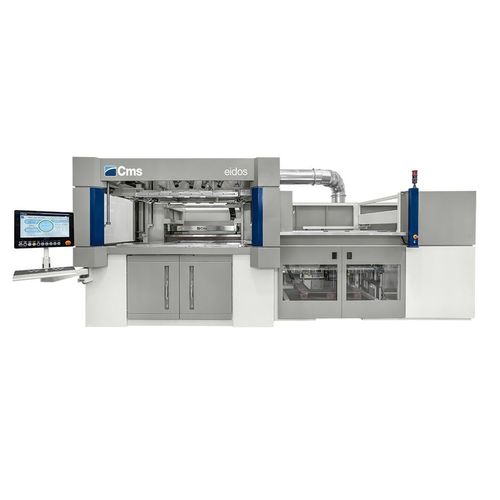

Sheet thermoforming machine eidos series

for hollow plastic partsautomaticvacuum

The new reference in heavy gauge vacuum forming Style and performance in a new product that re-confirms CMS as market benchmark for heavy gauge vacuum forming. The new EIDOS encompasses sophisticated mechanical solution to guarantee the best performance on the market and a highly innovative, new software, for total machine control that is extremely easy to use. • - New CMS HMI ThermoActive software designed specifically for the thermoforming process. The timeline and exclusive Dashboard make supervising production and the process control instant and easily understandable. • - CMS ThermoProphet system for the automatic management of the heating powers via thermal vision. • - The frame and counter mould movement with 4 electrically coupled Brushless motors (gantry). Transmission occurs via fixed toothed columns, eliminating moving mechanical parts that protrude from of the machine. • - New cooling system moulds with mobile outlets installed on the counter mould structure. • - Rapid format change thanks to fully automatic window plate and clamping frame. • - Mould table with PC controlled Brushless movement and with storable speed and measurements. The patented movement is achieved thanks to two electronically coupled servomotors (gantry), which guarantee the rapid and exact positioning of the mould. Eidos comes in mono-station version as well as with automatic loading/unloading system in different configurations. MAXIMUM CONTROL Thanks to CMS ThermoActive, the thermoforming process parameter setting is immediate. A guided system makes the likelihood of error almost impossible, instantly highlighting errors and inconsistencies.
