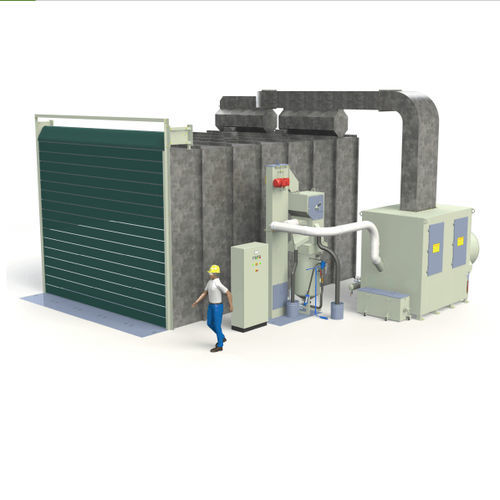

Pressure blast room

automatic

CMV® blast room operates with any abrasive and guarantees a very high productivity index. • Doors: the service door can be built-in metal with a manual opening and a motorized conveyor belt. • Luminaires are sealed against dust and abrasive and are dimensioned to obtain illuminance according to ISO 8995-1: 2002. • Working chamber: built-in steel sheet profiles bolted together are modulated to suit any dimension. Except for the ceiling, there is a rubber coating on the inside. • Horizontal transport of the abrasive: it has a system with scraper cars or, optionally, with threads, conveyor belts or even a pickup truck next to the mug lift. • Control panel: mounted in a shielded cabinet, equipped with CLP for the automatic control of the functions of the equipment, besides a security system that prevents the blasting with an open door. It meets the main international standards, like EN 60204-1.​ • Blasting machine: it has a pressure vessel built according to ASME VIII, hydrostatically tested, pneumatic remote control, operator protection, and air filter suitable for human breathing. There is also a high-efficiency pneumatic system and high-efficiency nozzle. • Mug elevator and abrasive purifier: the elevator features high chromium resistant high-abrasion cups and is driven directly by a reduction motor. The abrasive cleaner is highly efficient and easy to regulate. ​• Exhaust system: a combination of air inlet/outlet baffles ensures excellent visibility and eliminates abrasive waste. The Powder Collector features descending airflow (patent-pending) and filter cartridges with polyester elements with an electronically-controlled pulse-jet automatic cleaning system.
