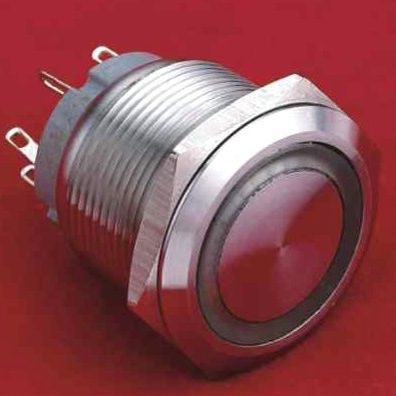

Sensitive push-button switch GQ22-11WEvandal-proofLED-illuminatedring
Add to favorites
Compare this product
Characteristics
- Type
- sensitive
- Protection level
- vandal-proof
- Other characteristics
- LED-illuminated, ring, micro
Description
Ø 22mm Diameter
Switch Rating: 5A/250VAC
Contact Configuration: 1NO1NC
Operation Type: Momentary
The Crust Material: Stainless Steel
Ring Illuminated
Travel:0.5mm
IP Degree: IP67
Feature:
Whole sealing structure, strong waterproof;
Micro- travel, nice operating hand feeling;
Using inner switch module, reliable and sensitive connection;
Using two lamps; have many LED color to recognize different signal. The same color flame in crescent ring, the different color can generate third mixed flame color at the blending place.
Used for low-current circuit to control the on-off signal of electronic logic circuit.
