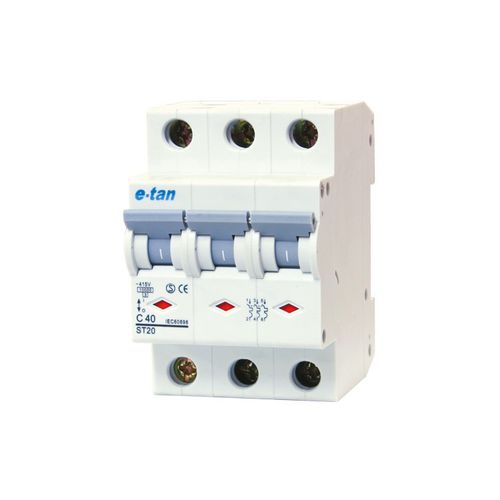

Miniature circuit breaker ST20 Series
Add to favorites
Compare this product
Characteristics
- Other characteristics
- miniature
- Primary current
Max.: 63 A
Min.: 4 A
- VAC
240 V, 415 V
Description
Technical data
rated voltage Ue - 240 / 415V
rated current In - 4 - 63A
rated frequency fn - 50 / 60HZ
rated impulse withstand voltage Uimp - 4000VAC
breaking capacity Icn - 10KA
short-circuit capacity Ics - 7.5KA
breaking characteristics - B,C Type
isolating class - class 3
ambient temperature - -5℃~ +40℃
IP-class - IP20
cross-section of connecting lead - input 1-25mm
output 1-16mm
electric standards - IEC/EN 60898
