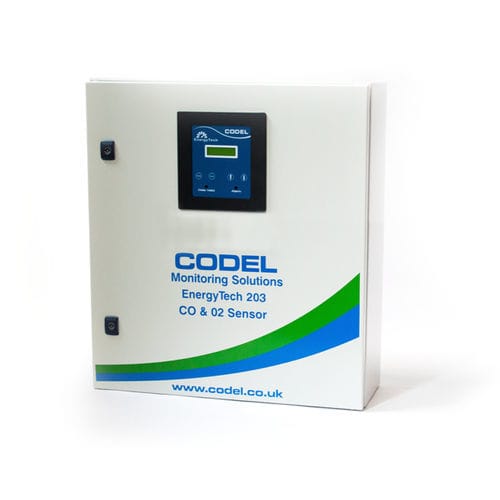

Carbon monoxide analyzer EnergyTech 203

flue gasoxygenmonitoring

The EnergyTech 203 O2 and CO analyser is the ideal equipment for fine tuning the air / combustible proportions in a way to improve process efficiency without compromising safety. The EnergyTech 203 O2 and CO analyser is the ideal equipment for fine tuning the air / combustible proportions in a way to improve process efficiency without compromising safety. Combustion efficiency is determined by low-level oxygen excess in the flue gas and is limited by the production of hazardous combustible gas (mainly CO) at low oxygen concentrations. It is thus crucial to control the O2 excess concentration as well a the amount of combustible gas in the flue gas to optimise combustion. Thanks to the CODEL infrared and zirconia technology, the analyser provides both oxygen concentration and an accurate measurement of CO in the flue gas Features & Benefits Minimal maintenance requirements - No consumables & low cost of ownership. Rapid, accurate results - for safe operation of coal handling systems. Analogue & contact outputs - communication to DCS & SCADA systems. Compact powerful diaphragm pump for constant reliable sampling. Automated self-cleaning filter design & blockage check. Temperature controlled Measurement Cell for maximum accuracy and long life. Automated back-flushing of probe filter & sample flow rate check.
