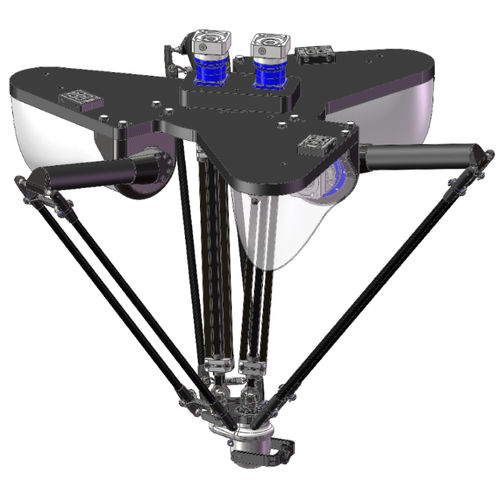

Delta robot D5-1300-S020-R1005-axispick-and-placefor the food industry
Add to favorites
Compare this product
Characteristics
- Type
- delta
- Number of axes
- 5-axis
- Function
- pick-and-place
- Application domain
- for the food industry, for the pharmaceutical industry, for the cosmetics industry
- Payload
1.5 kg
(3.307 lb)- Reach
1,300 mm
(51.18 in)- Repeatability
0.1 mm
(0.0039 in)
Description
Performance
Working area: 1300 x 400 mm
Pick & place: up to 130 p/min
Options
LW
G
Rotation
R100 7Nm
RH100 7Nm washdown
R200 19Nm
R201 19Nm
Accessory
Calibration tool
Vacuum pipe secondary arms
Vacuum hoses
Vacuum pipe clamps
Cable routing
