Roller conveyor R Light series

chainhorizontalroller

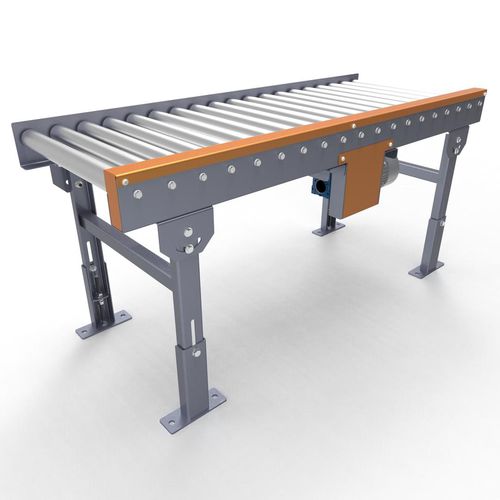

R10 Light Series • Length: To be determined based on installation requirements • Useful width: To be determined based on product dimensions. • Maximum load capacity: To be determined based on the width of the conveyor and the pitch between rollers. • Head: Thermoplastic / Metallic • Pinion: Thermoplastic / Metallic • Ø Shaft: 10, 12, 14, 15 and 17 mm • Roller Type: Fixed / Accumulation • Chain: 06B, 08B • Finish: Painted / Zinc Plated / Sandblasted • Motorization: central or head. For special executions consult CODIMAR It is the most universal transport system for products of different geometry and nature as long as they have a regular base. Properly configuring the type of roller and the pitch between them allows us to adapt to a multitude of materials to be transported. They can be used both with fixed rollers or that allow the accumulation of product. The traction of the rollers is done by chain loops. R50 Light Series • Length: To be determined based on installation requirements • Useful width: To be determined based on product dimensions • Maximum load capacity: To be determined based on the width of the conveyor and the pitch between rollers. • Head: Thermoplastic / Metallic • Pinion: Thermoplastic / Metallic • Ø Shaft: 10, 12, 14, 15 and 17 mm • Chain: 06B, 08B • Finish: Painted / Zinc Plated / Sandblasted
