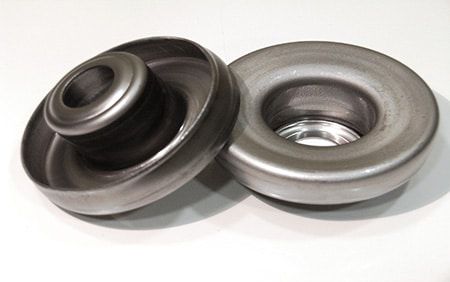

Roller conveyor cap LH D seriesroundelectro-welded steelfor tubes
Add to favorites
Compare this product
Characteristics
- Configuration
- round
- Material
- electro-welded steel
- Applications
- for tubes, for roller conveyors
- Diameter
Max.: 159 mm
(6.26 in)Min.: 80 mm
(3.15 in)
Description
Within the components for rollers we manufacture welded metal caps type: FL D60, FL D63.5 FL D70, FL D76, LH D80, LH D89, LH D101, LH D108, LH D133, LH D159.
LH D101
Electroweldable head for tubes of 101×3.6 and bearings for shafts with diameters of 20 and 25mm.
LH D108
Electroweldable head for D108x3.6 tubes and bearings for 20 and 25mm diameter shafts.
LH D133
Electroweldable head for D133x3.6 tubes and bearings for 20, 25 and 30mm diameter shafts.
LH D159
Electroweldable head for D159x4 tubes and bearings for 20, 25, 30 and 40mm diameter shafts.
LH D80
Electroweldable head for tubes of D80 and thicknesses 2 and 3mm. with bearings for shaft diameters 20 and 25.
LH D89
Electroweldable head for D89x3 tubes and 6204 and 6305 bearings
