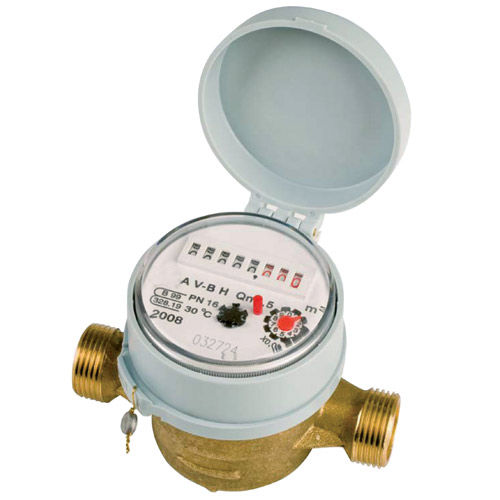

Dry dial water meter 1520 series

M/M ISO 228-1 - T° : 0°C / 50°C - PN 16 bar Use : Drinking water metering for residential installations. Design : Rotating dry dial (360°) with protective cover. Magnetic transmission. Reading by 8 rolls (00000,000 m3). Anti-fraud : Sealing, protective mechanism against crushing, Protection against external magnetic fields. Material : Brass body. Mechanical abilities : Frost-resistant. Low pressure loss (0.63 bar max.). Mounting : The upstream and downstream pipes can be straight or angled (U0D0). Certifications : MID 2014/32/UE & ACS Accuracy class : R80H (horizontal mounting). R50V (vertical mounting).
