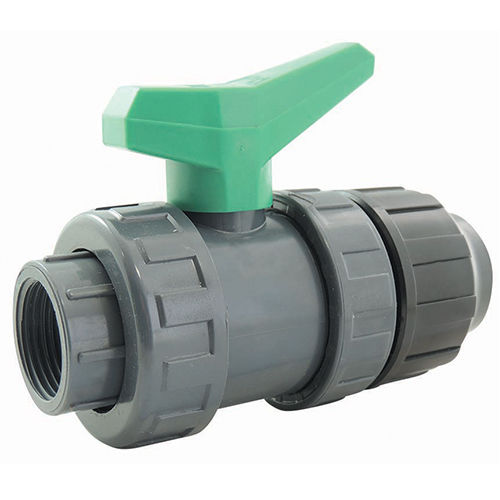

Ball valve 5227 series manualfemaleEPDM
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- manual
- Body
- female, EPDM, PVC, polypropylene, HDPE
- Applications
- for tubes, for swimming pool, for plastics, for pipes
- Other characteristics
- ISO
- DN
Max.: 63 mm
(2.48 in)Min.: 20 mm
(0.787 in)- Pressure
10 bar
(145 psi)
Description
Conditions of use
• Applications : water supply, irrigation, watering, swimming pool systems.
• Till DN32, nut tightening by hand.
• From DN40, nut tightening with a strap wrench.
• Use of PTFE tape recommended for threads sealing.
Technical features
• Polypropylene compression nut.
• HDPE seats.
• EPDM O rings.
• Dimensions complying with EN ISO 1452 : Plastics piping systems for water supply and for buried and above-ground drainage and sewerage under pressure - Unplasticized polyvinyl chloride (PVC-U).
• Hydraulic test complying with EN 917 : Plastics piping systems - Thermoplastics valves - Test methods for resistance to internal pressure and leak tightness.
