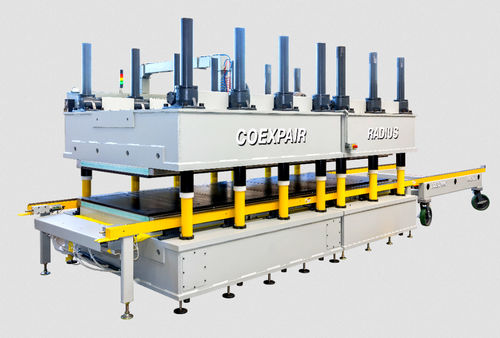

Pneumatic press
RTM formingcompressionfor molding

Add to favorites

Compare this product

Characteristics

Operation

pneumatic

Function

RTM forming, compression, for molding, heat transfer

Control

automatic, PLC-controlled

Other characteristics

custom, with heating plates

Applications

for production

Force

Min.: 0 tf

Max.: 630 tf

642.5 tf

Opening

Min.: 25 mm
(1 in)

Max.: 600 mm
(24 in)

Table width

1,300 mm
(51 in)

Max. pressure

Min.: 0 bar
(0 psi)

Max.: 12 bar
(174 psi)

12 bar
(174 psi)

Hydraulic pump power

196 kW

Description

(SQ)RTM WORKSTATION ELECTRICAL HEATING 196KW Oil-free heating system Up to 200°C 14 x 14kW heating zones controlled by PID UNIFORM PNEUMATIC PRESSURE 4200x1300 mm² 630 Tons available FLEXIBLE Assy of multiple presses No reinforced floor nor foundation are needed. DESCRIPTION • Illustrating the modularity of our press concept, the 630 Tons press is an assembly of a 270 Tons press module and a 360 Tons module • Welded upper steel bolster construction • The clamping area is 4,2m x 1,3m. The maximum bolster deflection is less than 0,125mm (11 bars) • Electric bolster actuation using (14) electric screw jacks. Daylight from 25mm to 600mm • Heating platens are flat and parallel to less than 0,125mm • 5 metric tons wheeled tool loading / unloading cart with pneumatic docking to the press
