- Pneumatic press
- Coexpair s.a.

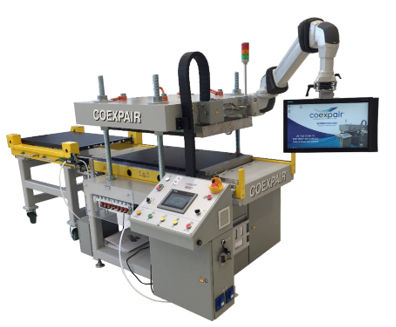

Pneumatic press electricRTM formingcompression
Add to favorites
Compare this product
Characteristics
- Operation
- pneumatic, electric
- Function
- RTM forming, compression, heat transfer
- Control
- automatic, PLC-controlled
- Other characteristics
- with heating plates, vacuum
- Force
Max.: 110 tf
Min.: 70 tf
112.2 tf
- Opening
Max.: 500 mm
(20 in)Min.: 10 mm
(0 in)- Table width
650 mm
(26 in)- Table length
1,000 mm
(39 in)- Max. pressure
Max.: 20 bar
(290 psi)Min.: 0 bar
(0 psi)20 bar
(290 psi)- Hydraulic pump power
28 kW
Description
(SQ)RTM WORKSTATION
ELECTRICAL HEATING 28KW
Oil-free heating system
Up to 200°C
2 x 14kW heating zones controlled by PID
Typical : 3°C/min for 150mm aluminum tool
UNIFORM PNEUMATIC-PRESSURE
1000x650 mm²
110 Tons available
PLUG AND PLAY
Easy installation
Simple interfaces
Suitable for plate & small parts manufacturing
DESCRIPTION
• Typically used for flat panel or small part production
• The clamping area is 1000mm x 650mm. Available Clamping force from 70 to 110 metric tons
• Threaded rod construction to quickly adjust the daylight between platens from 25mm to 400mm
• Manual Tool loading / unloading station that includes an external 1,25m rail system
