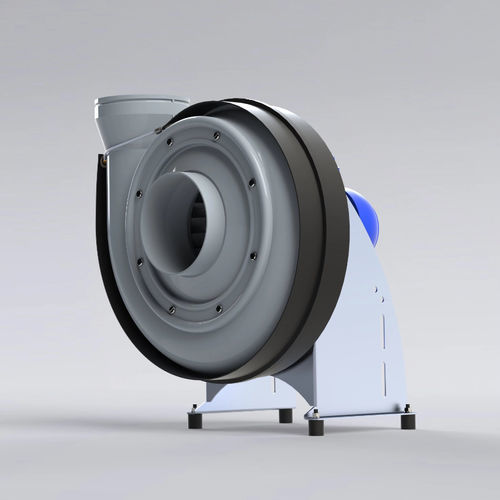

Radial fan CMVeco 125-400

exhaustsuctionEC motor

The Colasit CMVeco radial fan has been produced since 2009 and is a proven and absolutely reliable plastic fan. The CMVeco is available in various materials and drive concepts, and can be supplied for most applications with chemically aggressive gases and exhaust air. Construction – One stage, suction on one side – Direct drive or V-belt drive – CE marking Characteristics Static pressure min. 50 Pa to max. 3000 Pa Efficiency (tot. mech.) max. 79% Casing – Available in PE, PPs, PPs-el, PVDF, PVC, PPs white – Self-supporting shell construction – Vacuum formed (twin sheet) – 6 outlet positions for clockwise or counterclockwise rotation – Inlet cover can easily be removed to clean the fan – Splinter protection for maximum safety Impeller – Available in PPs, PPs-el, PVDF – Injection molded – Forward-curved impeller blades – Transmission of force via fully plastic-coated aluminum hub – Adapter for simple impeller mounting Support – Available in stainless steel or galvanized – Sturdy sheet metal construction – Maintenance-free flange bearing for version with V-belt drive
