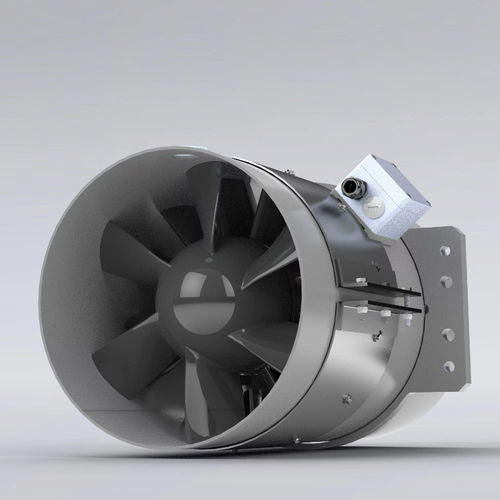

Duct fan CAVN 0315ATEXhigh-performanceaxial
Add to favorites
Compare this product
Characteristics
- Type
- duct, ATEX, high-performance
- Configuration
- axial
- Function
- cooling
- Drive mechanism
- electrically-powered
- Material
- plastic
- Other characteristics
- direct-drive
- Air flow
Min.: 1,000 m³/h
(35,314.667 ft³/h)Max.: 5,500 m³/h
(194,230.667 ft³/h)- Diameter
315 mm
(12.402 in)
Description
Colasit high performance axial fan designed as a duct fan. The guide vanes are matched to the impeller and increase the performance compared to a standard design.
The internal PM motor is controlled by a frequency converter. The motor is protected from the process air by a plastic housing. Additional motor cooling prevents the motor overheating.
Characteristics
Static pressure:
min. 400 Pa to max. 1000 Pa
Efficiency (tot. mech.):
up to max. 84 %
Housing material
PVC
Impeller material
Aluminium, coated
Drive
Direct drive
