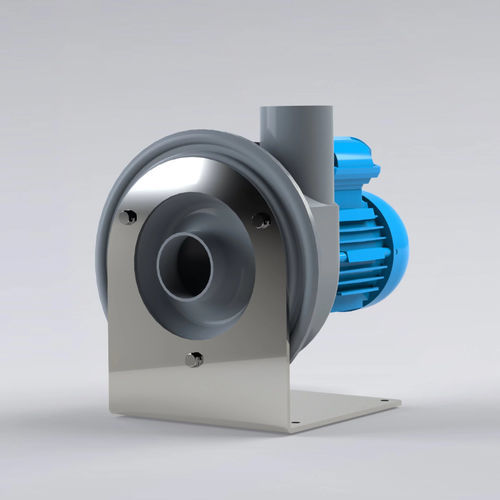

Radial fan CKV 75

suctionwith asynchronous motorplastic

The Colasit CKV small radial fan can be installed quickly and easily in any suitable position. It weighs less than 10 kg. The Inlet and outlet nozzles are suitable for DN 75 coupling connections (standard pipe). Construction – One stage, suction on one side – Direct drive – CE marking Characteristics Static pressure min. 35 Pa to max. 450 Pa Efficiency (tot. mech.) max. 42% Housing – Available in PPs – Self-supporting shell construction – Vacuum formed – Inlet cover can easily be removed to clean the fan – Counterclockwise rotation Impeller – Available in PPs – Injection molded – Transmission of force via fully plastic-coated aluminum hub – Adapter for simple impeller mounting Support – Available with powder-coated finish – Sturdy sheet metal construction Drive – Direct drive: Impeller mounted directly on motor shaft – Motor: Asynchronous motor Accessories/options Required – Vibration absorbers for floor mounting – Vibration absorbers for ceiling mounting – Sleeves as flexible connection or protective grid – Isolation switch Optional – Frequency converter for speed control
