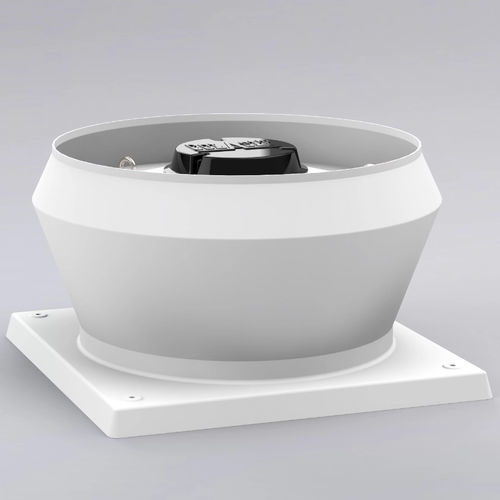

Rooftop fan CDVA

verticalaxialexhaust

The Colasit CDVA roof fan has a robust and seamless polyester housing made of weather-resistant plastic. This roof fan has a standard three-phase motor according to IEC, can be adjusted in single or multiple stages and can be optionally upgraded with a frequency converter. The motor is separated from the exhaust air flow and therefore protected against corrosion. Construction – One stage, suction on one side, vertical exhaust – Direct drive – CE marking Characteristics Static pressure min. 50 Pa to max. 600 Pa Efficiency (tot. mech.) max. 44% Housing – Available in GFRP – Sturdy, seamless casing Impeller – Available in PP – Axial impeller – Three setting angles for optimal operating point Drive – Direct drive: Impeller mounted directly on motor shaft – Motor: Asynchronous motor PM motor (required with FC) – Motor separated from exhaust Accessories/options Required – Isolation switch Optional – Frequency converter for speed control – Thermally insulated GFRP roof mounting base – Automatic damper
