Air purification system CRHE

wastewater

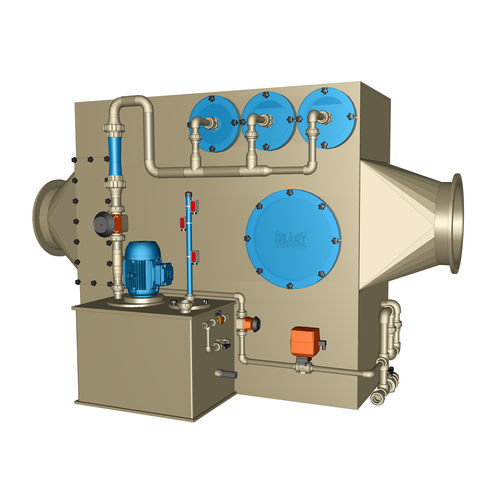

The Colasit CRHE cross-flow exhaust air scrubber with a horizontal design cleans contamination from highly-contaminated process air up to a volume of 70000 m3/h. Special versions with higher air performance are available on request. Into the horizontally flowing exhaust air, a washing liquid is injected in a cycle, which washes out the water-soluble contaminants by adding alkalis or acids. A collection tank collects the pollutants. Utilization Cleaning highly-contaminated process air with acidic or alkaline contamination in: The food industry The pharmaceutical, chemical or biochemical industry Semiconductor, solar and surface technology Wastewater treatment plants and waste recycling facilities Composting Drying processes Characteristics Volume flow: min. 1500 m3/h to max. 70000 m3/h Efficiency: up to max. 99 % Construction Made of non-corrosive plastics: PP, PPs, PE, PVC, PVDF, GRP. Packaging materials ensure sufficient boundary surface area between the gas and fluid phase. A mist eliminator is used to separate liquid drops that have been carried along. Ex Protection EX Logo Version available in ATEX zones 1 + 2
