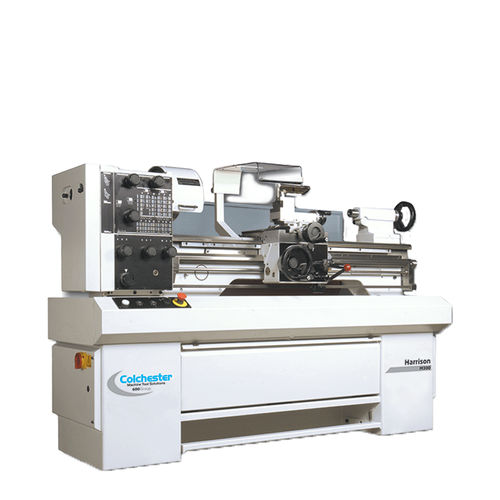

Conventional lathe M300
horizontal2-axisCamlock D1-4

conventional lathe
conventional lathe
conventional lathe
Add to favorites
Compare this product


Characteristics

Control type
conventional
Spindle orientation
horizontal
Number of axes
2-axis
Spindle mount
Camlock D1-4
Applications
for heavy-duty machining, for metal
Performance
precision
Other characteristics
compact
Diameter

330 mm
(12.99 in)

Spindle speed

Max.: 2,500 rpm
(15,707.963 rad.min-1)

Min.: 40 rpm
(251.327 rad.min-1)

Bar capacity

40 mm
(2 in)

Description

Harrison's M300 Centre lathe is a full-function lathe capable of the entire range of turning operations making it one of the most outstanding manual lathes of its kind. High quality design and manufacture, reliable performance, long life and standards of safety meeting all international and including the latest European CE requirements, make this conventional lathe an outstanding asset in any workshop. The M300 centre lathe is equally at home in industry, the toolroom, training and secondary and tertiary education. Compact and sturdy, the M300 conventional lathe has features for easy control of its comprehensive capabilities. It has the power to deal with heavy metal removal, at the same time offering precision for fine tolerance turning. Its modern format has been carefully planned for accessibility and maximum operator convenience, with routine servicing requirements kept to a minimum.
