3-axis CNC machining center EH-610verticalBT 4024 tools
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Spindle mount
- BT 40
- Number of tool stations
- 24 tools, 16 tools
- Other characteristics
- compact, high-rigidity
- X travel
610 mm
(24.02 in)- Y travel
350 mm
(13.78 in)- Z travel
460 mm
(18.11 in)- Rotational speed
10,000 rpm, 12,000 rpm
(62,832 rad.min-1, 75,398 rad.min-1)- Table load capacity
350 kg
(772 lb)- Weight
2,600 kg
(5,732.02 lb)- Overall length
1,960 mm
(77.2 in)- Overall width
1,730 mm
(68.1 in)- Overall height
2,300 mm
(90.6 in)
Description

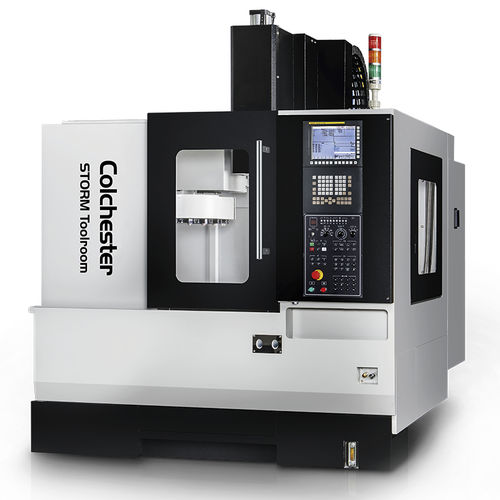

The Storm EH-610 Toolroom is a compact machining centre.
A high-speed spindle ensures that the STORM series gives outstanding efficiency, accuracy and value throughout its lifetime. Brilliant versatility and rigidity is offered as standard, with superior component finish, performed smoothly and easily.
Great option for education, training or Toolroom purposes
Compact footprint
Choice of FANUC, Heidenhain or Siemens control panel
Table size 710 x 350mm
