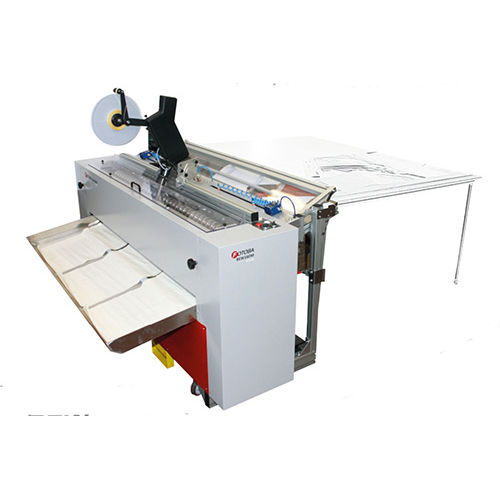

Paper rewinder-winder REW 104/160automaticroller
Add to favorites
Compare this product
Characteristics
- Type
- paper
- Operation
- automatic
- Other characteristics
- roller
- Roll diameter
9 cm
(3.54 in)- Roll width
110 cm, 160 cm
(43.31 in, 62.99 in)
Description
Multiple Tiles ReWinder
•Automatic Inline Rewinding Solution
•Made For Non-Stop Industrial Production
•Capable Of Rewinding Two Rolls Simultaneously
•Also Available In Stand Alone Model (Manual Feeding)
REW 104/160- INLINE VERSION FOR XLD 170 CUTTER
The Fotoba coreless rewinder and the XLD 170 creates a fully automated solution for cutting and rewinding applications.
REW 104/160- INLINE VERSION FOR XLD 170 CUTTER
The Fotoba coreless rewinder and the XLD 170 creates a fully automated solution for cutting and rewinding applications.
Technical Specification:
- Max paper width: REW 104: 110cm/64in | REW 160: 165cm/64in.
- Feeding speed: 34mt/min max
- Max winded-up roll diameter: 9cm / 8Kg up to two rolls simultaneously
- Winding accuracy: ± 3mm
- Net Weight: REW 104: 200Kg | REW 160: 254Kg
- Gross Weight: REW 104: 260Kg | REW 160: 440Kg
- Dimensions: REW 104: 160x140x109h | REW 160: 215x140x109h
- Shipping Dimensions: REW 104: 184x125x150h | REW 160: 240x125x150h
VIDEO
